COMBI-LR

COMBI-CSS

Suitable for loading any material into containers.

  • Capacity: 30,000 kg
  • Height: 626 mm
  • Overall Length: 16560 mm
  • Width: 3250 mm
  • Container Frame Length: 9780 mm
  • Motor: 37 kW 3 Phase
  • Hydraulic Stroke Mechanism: 13600 mm
  • Container Sizes: 20′ / 30′ / 40′
  • Slip Sheet Material: Hardox 500
  • Cycle Time: 40′ in 6 mins



Watch Video
View Spec Sheet
Description

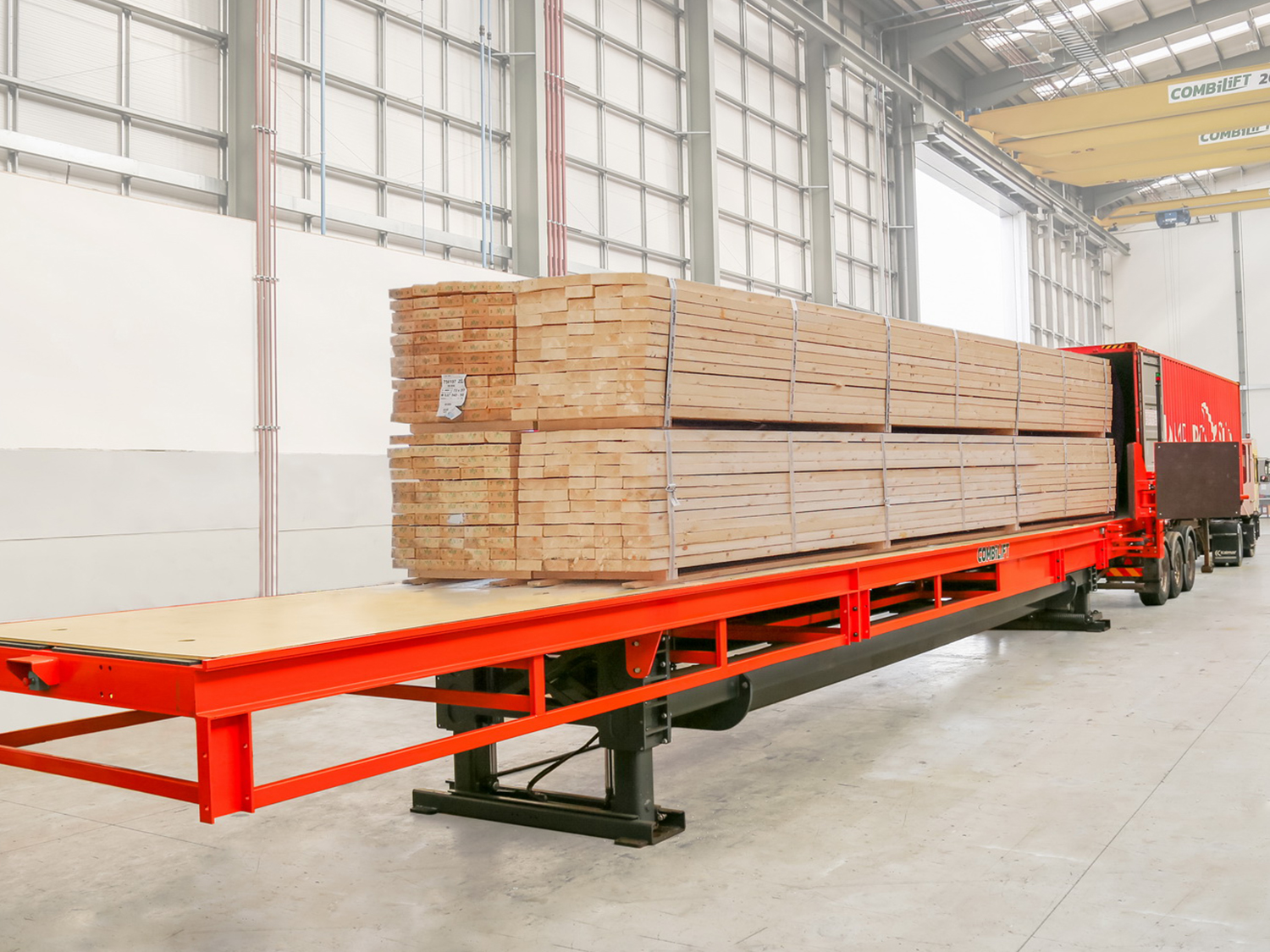

COMBI-CSS Container Loader

The Combi-CSS Container Slip-sheet, specifically designed for fast loading of freight containers with a maximum capacity of 30,000 kg. Complete a full container load cycle in under 6 minutes.

Suitable Industries

  • [wpml-string context="Combi-Lists" name="Aluminium"]Aluminium[/wpml-string]
  • [wpml-string context="Combi-Lists" name="Building Materials"]Building Materials[/wpml-string]
  • [wpml-string context="Combi-Lists" name="Logistics"]Logistics[/wpml-string]
  • [wpml-string context="Combi-Lists" name="Steel"]Steel[/wpml-string]
  • [wpml-string context="Combi-Lists" name="Warehousing"]Warehousing[/wpml-string]

Special Features

  • [wpml-string context="Combi-Lists" name="Load Time"]6 Minute Load Time[/wpml-string]
  • [wpml-string context="Combi-Lists" name="Hydraulic Levelling System"]Hydraulic Levelling System[/wpml-string]
  • [wpml-string context="Combi-Lists" name="3 Phase Electric Motor"]3 Phase Electric Motor[/wpml-string]
  • [wpml-string context="Combi-Lists" name="Patented Push-Pull Mechanism"]Patented Push-Pull Mechanism[/wpml-string]

NOT SURE WHICH COMBI-CSS IS THE RIGHT ONE FOR YOU? - CONTACT US

Additional information
Capacity

Fuel Type

Model

Range

Machinery Type
